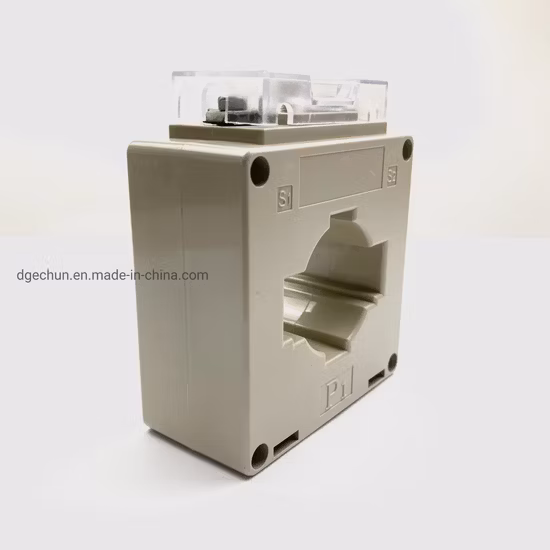

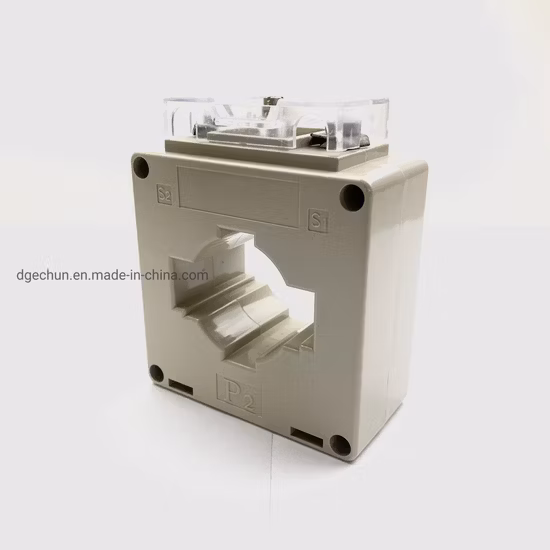

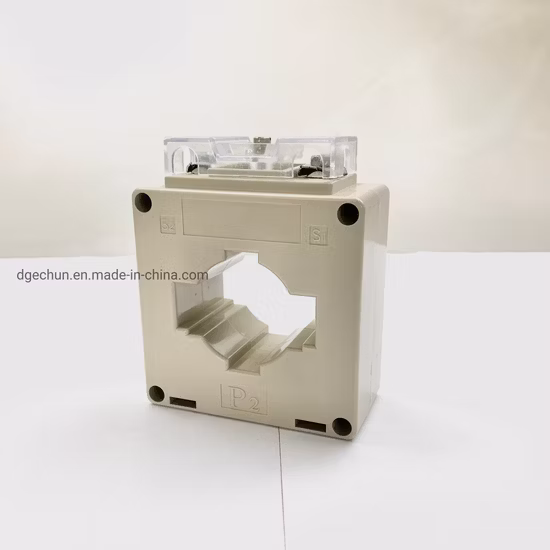

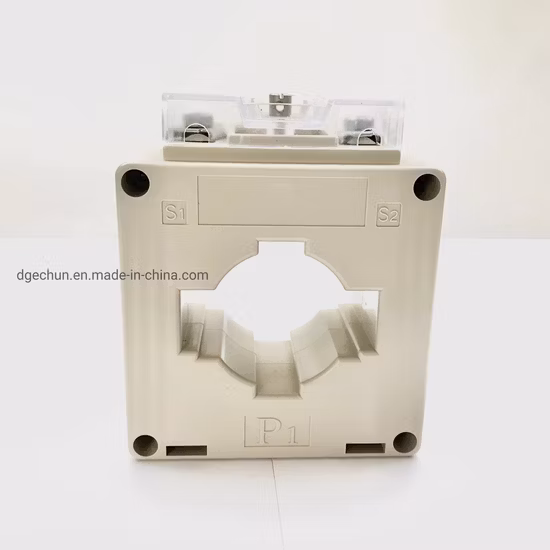

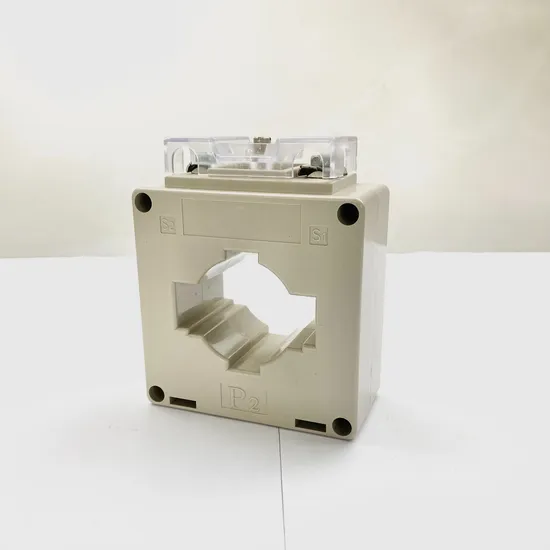

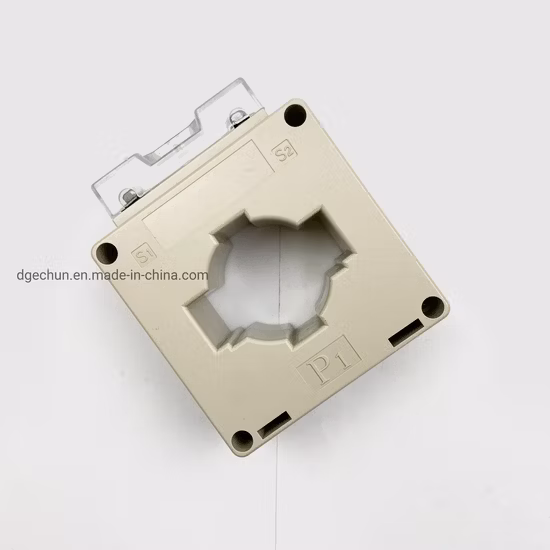

Echun Ech40 UL Closed Loop Current Transformer Solid Core CT Electrical Control Single Phase Copper Busbar Sensor AC 500A/5A

Basic Info

Model NO.	ECH40
Insulating Medium	Insulating Paper
Installation	Active Type
Magnetic Circuit Structure	Single Stage Type
Voltage Transformation Principle	Electromagnetic Type
Spec	500A/5A
Transport Package	30PCS/CTN
Trademark	ECHUN
Origin	China
HS Code	8504500000
Production Capacity	100000PCS/Month

Product Description

The ECH40500 Series current transformer is compact smaller than other models with the current ratio of the transformer is small, clamshell-style terminal cover is well protected by the second terminal. With related accessories you can use Din rail mounting.

Standard Input Current: 500A;Output Current:5A;Accuracy:0.5%Frequency: 50-400Hz;High accuracy and excellent linearity;Custom design Turns-Ratio available;Design standards: ANSI C57.13 & IEC60044-1 & UL Recognized;With UL Certification & CE Certification.

Current output: 5mA,10mA,20mA,33.3mA, 40mA, 50mA, 100mA, 1A, 5A...
Voltage output: 0.25V, 0.333V, 0.5V, 1V, 2V,5V...

Applications:Current measurement;Monitoring and protection;Energy and sub-metering products;Network equipment;Instruments and sensors;Control systems...

Advantage:Excellent linearity over the whole range;Fully RoHS compliant.
